DGX-O-DXL

Enova® DGX DXLink™ Twisted Pair Output Board

Limited Availability
DGX-O-DXL
Larger Images

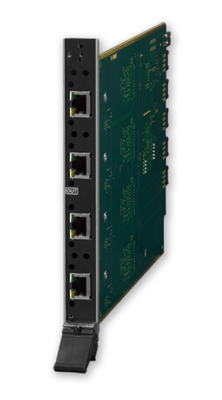

The DGX-O-DXL is a HDCP compliant twisted pair cable output board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Twisted Pair Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Output Board to power DXLink Twisted Pair Receivers.

Common Applications

The Enova DGX DXLink Twisted Pair Output Board is ideal for applications where destination devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    311 KB Mar 2024
Manuals
file type icon Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    16.4 MB Mar 2018
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: Dec 2020
    159 KB Dec 2020
Certifications
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 2021
    176 KB Feb 2021
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
file type icon Cabling for Success with DXLink
updated: Oct 2020
    1.6 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    419 KB Mar 2018
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Only One Cable – Send audio and video while passing control, Ethernet and power over one twisted pair cable
  • Send HDMI signals up to 100 meters – Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • HDCP Compliant

Specifications

FG Numbers FG1058-580
HARMAN Professional Solutions:

DGX-O-DXL

Enova® DGX DXLink™ Twisted Pair Output Board
