DGX-O-HDMI (discontinued)

Enova® DGX HDMI Output Board

DGX-O-HDMI
Larger Images

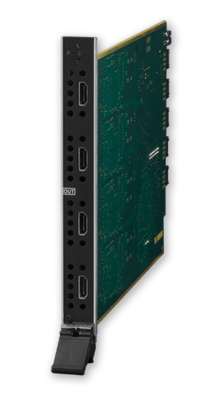

The DGX-O-HDMI is a HDCP compliant HDMI output board for the DGX 8, Enova DGX 16, Enova DGX 32, and Enova DGX 64. It has four connections and supports HDMI or DVI signals. The DGX-O-HDMI features SmartScale®Technology which outputs video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions.

Common Applications

The Enova DGX HDMI Output Board is ideal for applications where destinations are located within 15 meters of the Enova DGX Digital Media Switcher, eliminating the need for external receivers. Integrated SmartScale Technology provides optimal display resolution for each connected display.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    297 KB Mar 2024
Manuals
file type icon Instruction Manual - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    16.4 MB Mar 2018
file type icon Support Guide - Enova DGX Board Replacement
version P, updated: Mar 2021
  868 KB Mar 2021
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
Certifications
file type icon Enova DGX 100 Series CE Declaration of Conformity
updated: Feb 2021
    276 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 60950
updated: Feb 2021
    201 KB Feb 2021
file type icon Enova DGX 100 Series CB Test Certificate 62368
updated: Feb 2021
    143 KB Feb 2021
file type icon Enova DGX 100 Series Enclosure UL Certificate of Compliance
updated: Feb 2021
    176 KB Feb 2021
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - Enova DGX 8, 16, 32, 64 Digital Media Switchers
updated: Mar 2018
    419 KB Mar 2018
Comparison Charts
file type icon Comparison Chart - DGX Video Boards
updated: Dec 2020
    159 KB Dec 2020
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • InstaGate Pro® Technology – Easily integrate HDMI/HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints – it just works
  • SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
  • Hot Swappable – Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
  • Surround Sound Support – Pass through high definition surround sound including Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, and 2-channel through 8-channel L-PCM
