DX-TX-DWP (discontinued)

DXLink™ Multi-Format Decor Style Wallplate Transmitters (US)

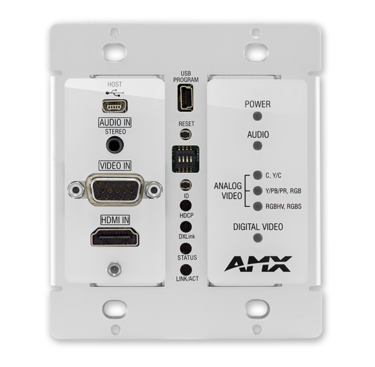

DX-TX-DWP

The DXLink Multi-Format Decor Style Wallplate Transmitter sends analog or digital video including HDMI/HDCP, along with embedded audio or supplemental analog audio up to 100 meters to an Enova DGX Digital Media Switcher, compatible Enova DVX All In One Presentation Switcher or directly to a DXLink Receiver. It receives Power over DXLink* from the Enova DGX, Enova DVX (3155HD, 3156HD, or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Dual Power over DXLink Controller over the twisted pair cable and features both a multi-format analog port to support legacy devices and an HDMI port to support newer digital devices.

Common Applications

Mount the DXLink Multi-Format Decor Style Wallplate Transmitter in the wall, lectern or popular floor box to connect guest equipment and send audio and video signals across the room, on the other side of the house or in a classroom down the hall. Since it is powered remotely, the wallplate can be installed virtually anywhere.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    407 KB Mar 2024
Manuals
file type icon Hardware Reference Manual - DXLink Twisted Pair Transmitters/Receiver
updated: Mar 2018
    3.83 MB Mar 2018
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
CAD Drawings
file type icon Pictorial Drawing - DXLink Multi-Format Decor Style Wallplate Transmitters (DXF)
updated: Oct 2020
    2.22 MB Oct 2020
file type icon Pictorial Drawing - DXLink Multi-Format Decor Style Wallplate Transmitters (DWG)
updated: Oct 2020
    588 KB Oct 2020
file type icon Pictorial Drawing - DXLink Multi-Format Decor Style Wallplate Transmitters (PDF)
updated: Oct 2020
    199 KB Oct 2020
Bim Objects
file type icon DX-TX-DWP - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon DXLink Transmitter Firmware
version 1.6.29, updated: Sep 2018
1.6.29     488 KB Sep 2018
platform icon DXLink Transmitter Firmware (100 Series Compatible)
version 1.8.47, updated: Oct 2020
1.8.47     528 KB Oct 2020
Certifications
file type icon DX-TX-DWP/DX-TX-WP UL Certificate of Compliance
updated: Apr 2018
    246 KB Apr 2018
file type icon DX-TX-DWP/DX-TX-WP CE Declaration of Conformity
updated: Apr 2018
    255 KB Apr 2018
file type icon DX-TX-DWP/DX-TX-WP IECEE CB Test Certificate
updated: Apr 2018
    149 KB Apr 2018
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020
file type icon Cabling for Success with DXLink
updated: Oct 2020
    1.6 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - DXLink Multi-Format Wallplate/Decor Style Wallplate Transmitter
updated: Mar 2018
    550 KB Mar 2018
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Only One Cable – Send audio and video, while passing power over one twisted pair cable
  • Multi-Format Analog Port and HDMI Port – Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort++ and DVI signals
  • Send HDMI signals up to 100 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Easy Installation – Mounts in standard decor style wallplates
  • Power over DXLink* Enabled – Designed for use with Enova DGX or DVX systems with DXLink inputs, or PS-POE-AT-TC (FG423-84) or PDXL-2 (FG1090-170) to provide remotely located Power over DXLink (requires firmware v1.2.40 or above)
  • DXLink Direct Connection – When receiving Power over DXLink* from the PS-POE-AT-TC or PDXL-2, DXLink Wallplates can be connected directly to a DXLink Receiver for a point-to-point solution



*Power must be supplied by one of the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed), Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment.

Specifications

Dimensions (HWD) 4 1/16" x 3 1/2" x 2 1/4" (10.31 cm x 8.84 cm x 5.72 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Cat6A and Cat7; up to 328 ft (100 m)
USB (HID) (1) USB Mini A/B Connector (“HOST”); Use in conjunction with an Enova DGX Digital Media Switcher
Front Connectors USB Mini-B Connector; HDMI Input: HDMI Type A Female; Analog Video Input: HD-15; Analog Stereo Input: 3.5mm Mini-Stereo Jack;
Back Connectors DXLink Output: RJ-45
HDMI Compatible Formats: HDMI, HDCP, DVI; Data Rate (Max): 4.95 Gbps / 6.75 Gbps
HDMI Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i; 3D Format Support: Yes
HDMI Audio Audio Resolution: 16 bit to 24 bit; Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192kHz
HDCP & DDC/EDID HDCP: Supports AMX HDCP InstaGate Pro Technology When used with an AMX Digital Media Switcher the key support is up to 16 sinks per output, independent of source device; DDC/EDID Support: EDID in point-to-point mode is passed up from the sink Device
Analog Video Compatible Formats RGBHV, RGBs, RGsB, YPbPr (HDTV), Y/c (S-Video), C (Composite)
Analog Video Resolution Support Progressive Resolution Support: 480p up to 1920x1200 @ 60 Hz; Interlaced Resolution Support: 480i, 576i, 1080i
Audio (Analog & Digital S/PDIF) S/PDIF Audio Format Support: Dolby Digital, DTS, 2 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; S/PDIF Resolution: 16 to 24 bit
FG Numbers

FG1010-325-BL (Black)
FG1010-325-WH (White)
