DX-TX-DWP-4K

DXLink™ 4K HDMI Decor Style Wallplate Transmitters (US)

Larger Images

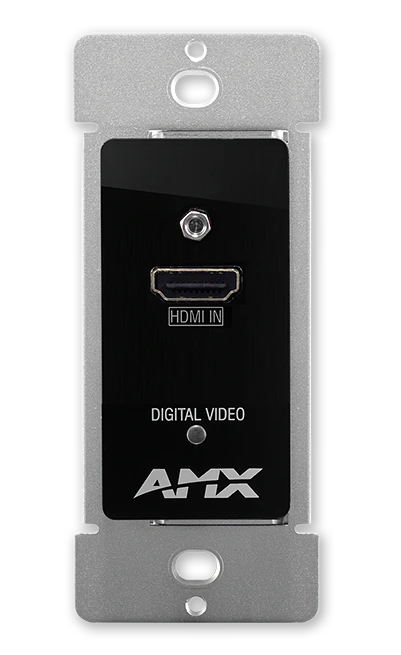

The DXLink 4K HDMI Decor Style Wallplate Transmitter sends HDMI/HDCP, along with embedded audio up to 80 meters over one shielded Cat6A or Cat7 standard twisted pair cable to an Enova DGX Digital Media Switcher.

Common Applications

Mount the DXLink 4K HDMI Decor Style Wallplate Transmitter in the wall, lectern or popular floor box to connect guest equipment and send audio and video signals across the room, on the other side of the house or in a classroom down the hall. Since it is powered remotely, the wallplate can be installed virtually anywhere.

Downloads

  Version Language Size Uploaded
Comparison Chart     68.6 KB Jul 09, 2018
Data Sheet     321 KB Jul 06, 2018
Manuals
Hardware Reference Manual - DXLink Twisted Pair 4K Transmitters/Receivers     3.48 MB Mar 26, 2018
TSG Enova DGX Board Repalcement Rev N     523 KB Jul 16, 2018
CAD Drawings
Pictorial Drawing - DXLink 4K HDMI Decor Style Wallplate Transmitters (US) (DWG)     729 KB Apr 09, 2018
Pictorial Drawing - DXLink 4K HDMI Decor Style Wallplate Transmitters (US) (PDF)     194 KB Apr 09, 2018
Bim Objects
DX-TX-DWP-4K - BIM Object     Aug 12, 2019
Certifications
DX-TX-DWP-4K UL Notice of Authorization To Apply The UL Mark     167 KB Apr 25, 2018
DX-TX-DWP-4K CE Declaration of Conformity     50 KB Apr 25, 2018
DX-TX-DWP-4K IECEE CB Test Certificate     196 KB Apr 25, 2018
Whitepapers
Using SDI with the Enova DGX & DVX     484 KB Apr 25, 2018
Cabling for Success with DXLink     1.6 MB Apr 25, 2018
Quick Start Guides
Quick Start Guide - DXLink Twisted Pair 4K Transmitters and Receivers     809 KB Mar 26, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • 4K and Ultra High Definition (UHD) Support – Experience high-quality video resolution for 4K devices
  • Only One Cable – Send audio and video over one twisted pair cable
  • Send HDMI signals 80 meters – Extend the reach of the HDMI signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
  • Easy Installation – Mounts in standard decor style wallplates

Specifications

Dimensions (HWD) 4 1/5” (10.67 cm) x 1 1/4” (3.23 cm) x 1 3/4” (4.45 cm)
Twisted Pair Cable Type & Length Shielded Cat6A or Cat7; up to 262 ft. (80 m) for full 4K, 328 ft. (100 m) for 1080p and below
USB (HID) n/a
Front Connectors n/a
Back Connectors n/a
HDMI Compatible Formats: HDMI , HDCP, DVI (DVI requires conversion cable)
HDMI Support Progressive Resolution Support: 480p up to 4096 x 2160 @ 60 Hz* (*Y/Cb/Cr 4:2:0); Interlaced Resolution Support: 480i, 576i, 1080i; 4K Resolution Support: 3840 x 2160p @ 24/25/30 Hz up through 4096 x 2160p @ 60 Hz, 4:2:0*
HDMI Audio Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM (Dolby Digital and DTS support up to 48 kHz, 5.1 channels)
HDCP & DDC/EDID n/a
Analog Video Compatible Formats n/a
Analog Video Resolution Support n/a
Audio (Analog & Digital S/PDIF) n/a
FG Numbers

FG1010-330-BL (Black)
FG1010-330-WH (White)

DX-TX-DWP-4K

DXLink™ 4K HDMI Decor Style Wallplate Transmitters (US)


4K
