PDXL-2 (discontinued)

Dual Power over DXLink Controller

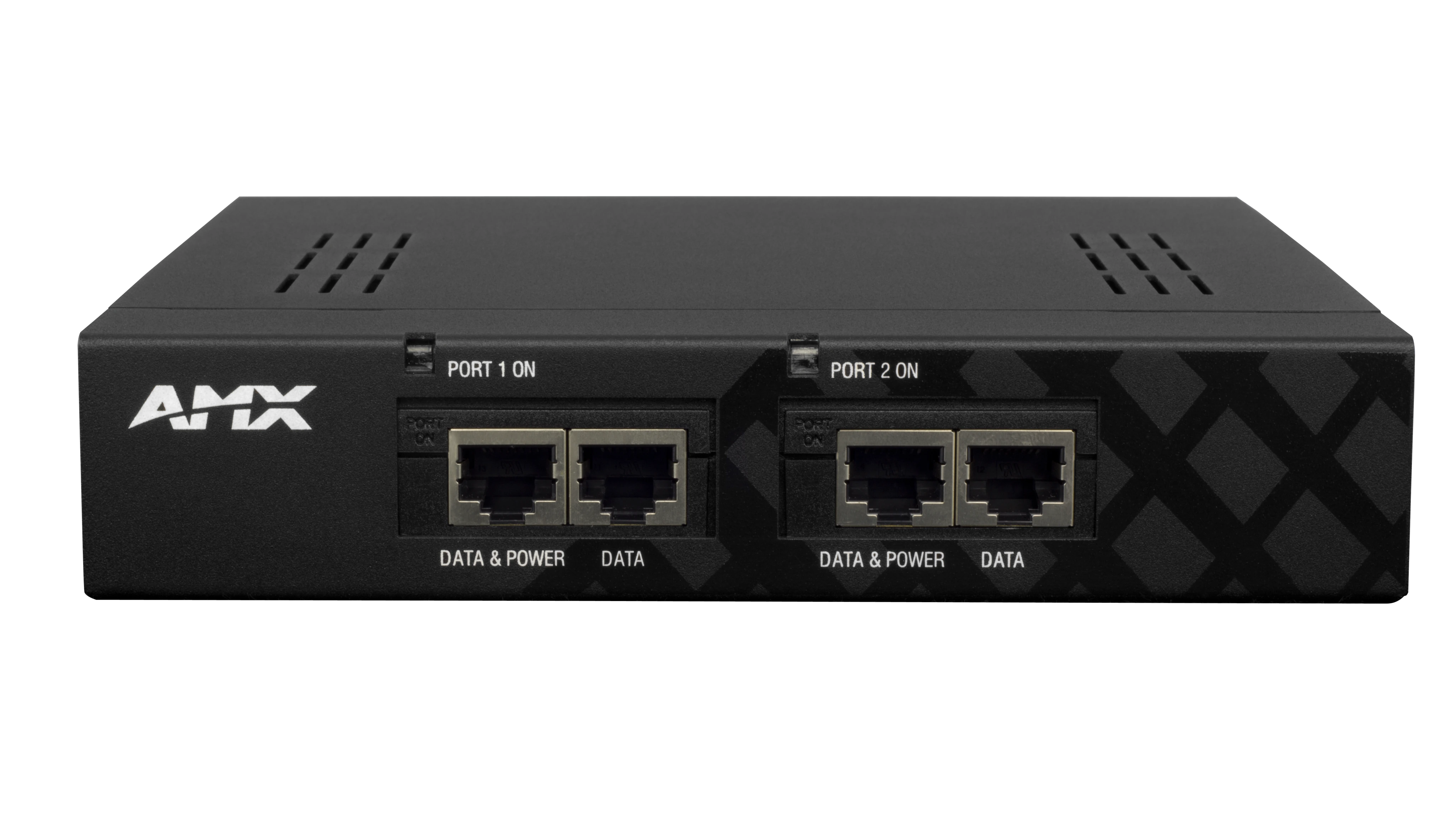

PDXL-2
Larger Images

The PDXL-2 is a Power over DXLink injector which allows for remote powering of any two DXLink devices by "injecting" power through the twisted pair cable. The PDXL-2 also accepts I/O control from a NetLinx controller allowing power down capabilities to either (or both) of the connected DXLink devices to achieve power savings when they are not in use.

The PDXL-2 Dual Power over DXLINK Controller provides the ability to power a point-to-point DXLink Transmitter to DXLink Receiver without the need for an AC outlet in proximity to the location of the DXLink devices. When used with a NetLinx controller, the PDXL-2 can power down the DXLink devices as part of a standby mode for an entire room to reduce energy usage.

Downloads

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - Dual Power over DXLink Controller (PDF)
updated: Jul 2018
    152 KB Jul 2018
file type icon Pictorial Drawing - Dual Power over DXLink Controller (DXF)
updated: Jul 2018
    845 KB Jul 2018
file type icon Pictorial Drawing - Dual Power over DXLink Controller (DWG)
updated: Jul 2018
    240 KB Jul 2018
Bim Objects
file type icon PDXL-2 - BIM Object
updated: Aug 2019
    Aug 2019
Data Sheets
file type icon PDXL-2 Dual Power over DXLink Controller
updated: Jul 2018
    353 KB Jul 2018
Quick Start Guides
file type icon Quick Start Guide - PDXL-2 Dual Power over DXLink Controller
version D, updated: Jul 2018
  316 KB Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions (HWD) 1 7/16" x 7" x 6 13/16" (36.3 mm x 177.8 mm x 172.4 mm)
Weight 2.25 lbs (1.02 kg)
Power Requirements
  • Power Connector: (1) 100-240V, 50/60 Hz, 1.6 A
  • Power Consumption:
    • Maximum Current Draw: 1.0 A
    • Typical Current Draw: 0.35 A

Note: Power consumption varies based on the number and type of powered devices

Environmental
  • Temperature (Operating): 32° to 104° F (0° to 40° C)
  • Temperature (Storage): –4º to 158ºF (–20º to 70ºC)
  • Humidity (Operating): 90%, Non-condensing (maximum)
  • Humidity (Storage): 95%, Non-condensing (maximum)
  • Operating Altitude: –1000 to 10,000 ft. (–304.8 to 3048 m)
DXLink
  • DXLink Ports: (2) sets of 2 RJ-45 LAN connectors
  • Transport Layer Throughput: 10.2 Gbps pass thru
  • Power over DXLink Output: (per output)
    • Pin Assignment & Polarity 4/5 (+), 7/8 (–)
    • Output Power Voltage 55 VDC
    • Output Power 30 Watts (guaranteed)
Controls
  • Relay Connection Type: (1) 4-pin 3.5 mm (female) captive-wire connectors
    • GND
    • Relay Port2
    • Relay Port1
    • +12V
  • Relay Description:
    • NetLinx Ports 1 & 2
    • Channels 1-2
    • Each relay can switch up to 24 VDC or 28 VAC @ 1 A
    • Each relay is independently controlled
  • Relays: 2

Note: Connecting the PDXL-2 to the I/O port on the NetLinx Central Controller enables you to power off devices

Indicators
  • (2) LEDs (1 for each DXLink Powered Output)
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
General
  • Front Components
    • AC Power Indicator
    • Channel Power Indicator
  • Back Components
    • DXLink Ports
    • Power Connector
  • Certifications
    • FCC Part 15 Class A
    • CE EN 55022 Class A
    • CE EN 55024
    • CE EN 60950-1
    • IEC 60950-1
    • C-Tick CISPR 22 Class A
    • UL 60950-1
  • Mounting Options
    • Compatible with all V Style versatile mounting options including rack, surface or pole
  • Compatible AMX Products
    • DXLink HDMI Transmitter Module
    • DXLink Multi-Format Transmitter Module
    • DXLink Multi-Format Decor Style Wallplate Transmitters (US)
    • DXLink Multi-Format Wallplate Transmitters
    • DXLink HDMI Receiver Module
Certification

PDXL-2 IECEE CB Test Certificate

PDXL-2 CE Declaration of Conformity

PDXL-2 UL Certificate of Compliance

FG Numbers FG1090-170
