MXR-1001 (discontinued)

10.1" Modero X® Series G5 Retractable Touch Panel

Larger Images

Replacement Products



    Modero X® and Modero S Series Multi Preview Live


    Modero X® and Modero S Series Screen Cleaning Kit

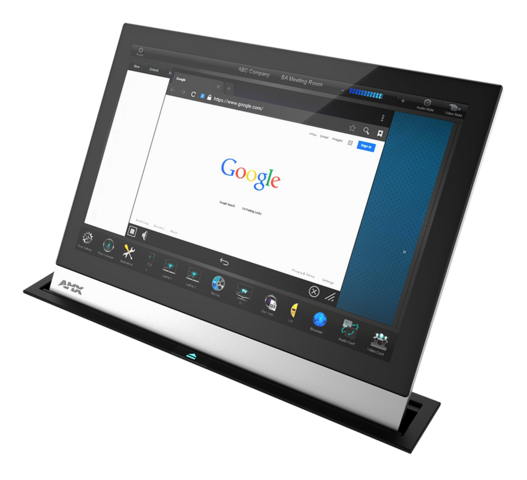

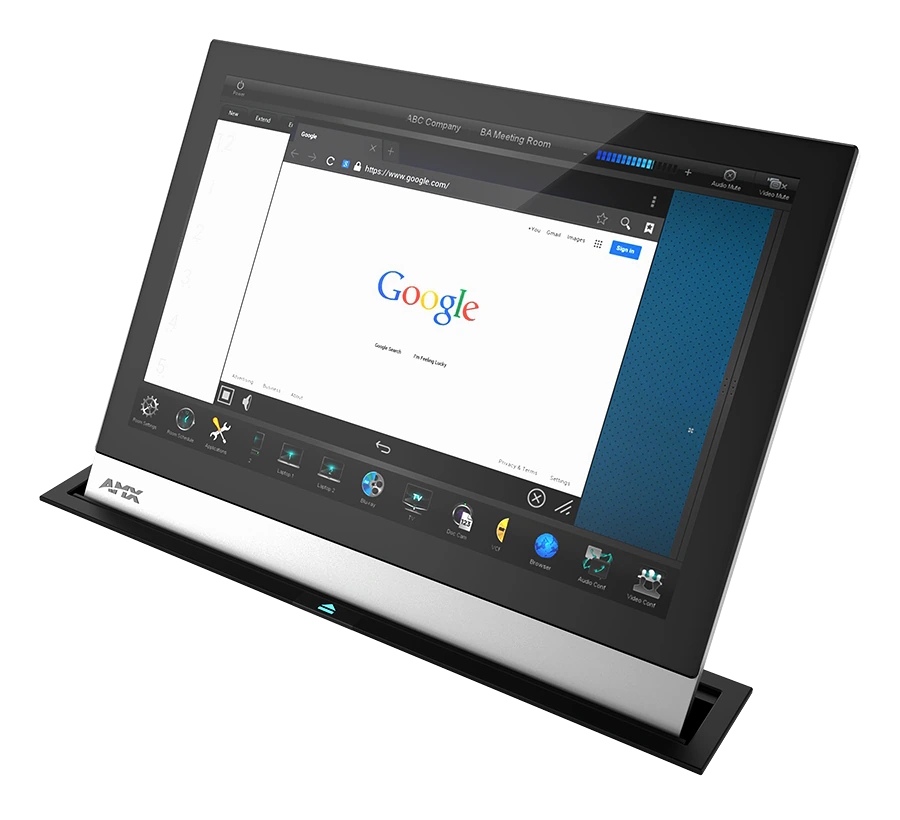

The MXR-1001 / 10.1" Modero X® Series G5 Retractable Touch Panel adds elegance to any meeting space. This beautiful panel retracts flush with the table surface, and with the touch of a button, or with NetLinx control, glides gracefully up for use. This unique, space-saving solution eliminates table clutter and exceeds the aesthetic and functionality requirements of the most discerning users.

This custom-engineered retractable panel is thin in design, but packed with features. It includes all the key G5 capabilities that customers love, including fast and smooth animations and transitions along with a quad-core processor that provides more than enough processing power to run the most demanding applications today and in the future. The MXR-1001 also includes a built-in web browser and document viewers, enabling users to access real-time information during meetings or lectures. The MXR-1001 also offers edge-to-edge capacitive touch glass with multi-touch capabilities.

Common Applications

The MXR-1001 is ideal for high-end boardrooms and executive briefing centers that require:

  • A premium, elegant user interface that stays out of sight when not in use
  • A clean, clear table surface
  • Multiple user interfaces on the same table





  Version Language Size Uploaded
file type icon Data Sheet
updated: Sep 2023
    367 KB Sep 2023
file type icon Installation Hardware Reference Manual - MXR-1001 Modero X Series G5 Retractable Touch Panel
updated: Mar 2018
    683 KB Mar 2018
CAD Drawings
file type icon Pictorial Drawing - MXR-1001 Retractable Touch Panel (DWG)
updated: Oct 2020
    1020 KB Oct 2020
file type icon Pictorial Drawing - MXR-1001 Retractable Touch Panel (DXF)
updated: Oct 2020
    923 KB Oct 2020
file type icon Pictorial Drawing - MXR-1001 Retractable Touch Panel (PDF)
updated: Oct 2020
    275 KB Oct 2020
platform icon TPDesign5
version 1.5.111, updated: Oct 2018
1.5.111     46.1 MB Oct 2018
platform icon G5 Support Files
version 1.5.69, updated: Jun 2023
1.5.69     2.47 MB Jun 2023
platform icon Modero G5 (MD & MT) Touch Panel Firmware
version 1.8.55, updated: Oct 2022
1.8.55     276 MB Oct 2022
file type icon Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 2018
    1.22 MB Apr 2018
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
file type icon AMX G5 Considerations
updated: Apr 2018
    1.15 MB Apr 2018
Application Guides
file type icon AMX and the Perfect Meeting Room
updated: Oct 2020
    426 KB Oct 2020
Programming Guides
file type icon Configuration and Programming Guide - Modero X Series G5 Touch Panels
updated: Oct 2020
    5.26 MB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - MXR-1001 Modero X Series G5 Retractable Touch Panel
updated: Mar 2018
    304 KB Mar 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


  • Hideaway Panel – Saves space and ensures that high-end rooms retain their premium styling by remaining flush with table when closed
  • Reinforced Thin Panel – Panel is sleek and thin, while unique hinge design ensures that the panel remains sturdy when users press on it
  • Perfect From Any Angle – Includes In-Plane Switching (IPS) for the widest viewing angles and most accurate color reproduction on the market. Patent-pending technology automatically elevates and tilts the touch panel display to the ideal viewing angle when in use.
  • Motorized & NetLinx-Controllable – Raise or lower the panel based on room occupancy, macros, or NetLinx events
  • G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
  • Simplified Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel files and firmware files from a network URL for simplified company-wide updates
  • Built-in Web Browser, Document Viewers and Enzo Sharing – Conveniently simplifies accessing and presenting real-time content and documents during meetings. Simply preview files accessed via the native web browser, USB, or cloud storage apps before sending content directly to Enzo.
  • Latest Communication Technologies – Supports HD video conferencing leveraging the integrated camera, along with HD video streaming. Also supports Bluetooth devices and USB connectivity.
  • Adjustable Security Modes – With the ability to select from high security or custom modes, administrators can customize the panel’s security levels for access, networking and communication.
  • View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data sources) enabling the user to scroll or search to make a selection. Demos are available in the UI Resource Center

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.


Display Size (WH) 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH) 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G5
Front Panel Components Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
FG Numbers

FG5968-56 (Black)
FG5968-57 (Silver)
