NX-1200

NetLinx NX Integrated Controller

NX-1200
Larger Images

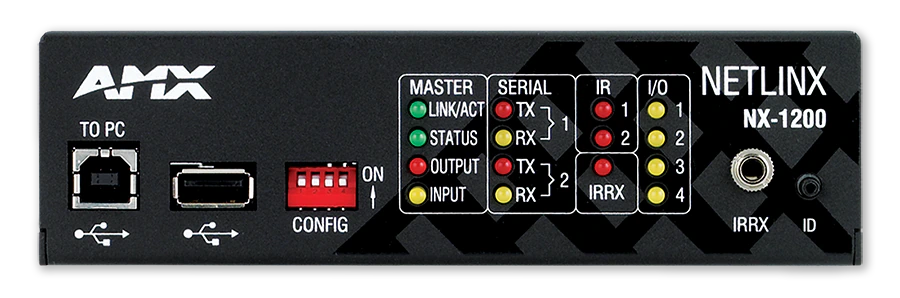

The NX-1200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-1200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-1200 is designed to control and automate a variety of devices in single rooms or multiple small rooms and is capable of supporting devices with a variety of communication formats.

Common Applications

  • NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise
  • The NX-1200 is perfect for small classrooms, huddle spaces, small conference rooms, learning spaces and multi-zone systems with a small number of wired devices
  • The NX-1200 is designed to provide secure control and monitoring for a small AV system, HVAC, lights, security, power management, and many similar specialized applications requiring a space-saving physical control device with versatile mounting

Downloads

  Version Language Size Uploaded
file type icon Comparison Chart
updated: Mar 2024
    89.3 KB Mar 2024
file type icon Data Sheet
updated: Mar 2024
    379 KB Mar 2024
Manuals
file type icon Excerpt - What's New in X-Series Controllers
updated: Oct 2020
    96.8 KB Oct 2020
file type icon Hardware Reference Manual - NX-Series NetLinx NX Integrated Controllers
updated: Oct 2020
    1.03 MB Oct 2020
CAD Drawings
file type icon Pictorial Drawing - NX-1200 NetLinx NX Integrated Controller (DWG)
updated: Apr 2018
    206 KB Apr 2018
file type icon Pictorial Drawing - NX-1200 NetLinx NX Integrated Controller (DXF)
updated: Apr 2018
    727 KB Apr 2018
file type icon Pictorial Drawing - NX-1200 NetLinx NX Integrated Controller (PDF)
updated: Apr 2018
    185 KB Apr 2018
Firmware
platform icon NX Series (X200) NX/DVX/DGX Device Firmware
version 1.1.48, updated: Jun 2019
1.1.48     52 KB Jun 2019
platform icon NX Series (X200) NX/MCP/DGX Controller Firmware
version 1.6.179, updated: Apr 2021
1.6.179     156 MB Apr 2021
Quick Start Guides
file type icon Quick Start Guide - NX-1200 NetLinx NX Integrated Controllers
updated: Oct 2020
    215 KB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - NX-1200 NetLinx NX Integrated Controller
updated: Jun 2018
    71 KB Jun 2018
Certifications
file type icon NX-1200/NX-2200/NX-3200 - NetLinx NX Integrated Controller UL Certificate of Compliance
updated: Apr 2018
    175 KB Apr 2018
file type icon NX-1200/NX-2200/NX-3200 - NetLinx NX Integrated Controller IECEE CB Test Certificate
updated: Apr 2018
    191 KB Apr 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Quick Reference Guides
file type icon Language Reference Guide - NetLinx Programming Language
updated: Mar 2018
    1.92 MB Mar 2018
Programming Guides
file type icon WebConsole & Programming Guide - NX-Series Controllers, Enova DGX, Enova DVX, Massio
updated: Oct 2020
    3.21 MB Oct 2020
Safety Sheets
file type icon Safety Instructions - NX-Series NetLinx NX Integrated Controllers
updated: Oct 2020
    85.3 KB Oct 2020
Information Documents
file type icon Benefits And Applications of Websockets
updated: Oct 2020
    223 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
  • IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
  • X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
  • Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
  • High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
  • Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
  • TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
  • Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
  • Network Syslog – Supports standard device logging to a syslog server
  • Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
  • File Import / Export From USB Drive – Backup and restore configuration data, program files, and update firmware from a standard USB flash drive
  • Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
  • Ultra-Fast 1600 MIPS processor
  • 512 MB Onboard RAM
  • 1 M Non-Volatile Memory
  • 4 GB SDHC FLASH Memory
  • 1 RU x 1/3 Rack Space
  • 1 AXLink Interface
  • 1 10/100 LAN Interface
  • 4 Digital I/O Ports
  • 1 RS232/422/485 Port
  • 1 RS232-Only Port
  • 2 IR/Serial Output Ports
  • 1 IR Receiver Port

Specifications

Dimensions (HWD) 1 11/16” x 5 13/16” x 5 1/8” (42.16 mm x 147.32 mm x 130.81 mm)
Weight 1.6 lb. (.726 Kg)
Memory Memory Card: 4 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives
Power Consumption Active Power Consumption: 3 W
AxLink Port (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
AxLink Indicator (1) AxLink LED (green) indicates the state of the AxLink port
RS-232/422/485 Ports (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
RS-232 Port (1) 5-position 3.5mm Screw Terminal, NetLinx Port 2, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud
Serial Indicator (2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
IR/Serial (2) 2-position 3.5mm Screw Terminal, 2 IR Transmit / 1-way Serial ports, NetLinx Ports 11-12, Support high-frequency carriers up to 1.142 MHz, 2 IR/Serial data signals can be generated simultaneously
IR/Serial Indicators (2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
I/O Channels (4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4
I/O Indicator (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
IR/RX Ports (1) 1/8” mini-jack
IR/RX Indicator (1) IR RX LED (red) LED lights when IR data is being received via the IR/RX port
FG Numbers FG2106-01
