SC-TC-D

N-Series Touchscreen Controller

Larger Images

OVERVIEW

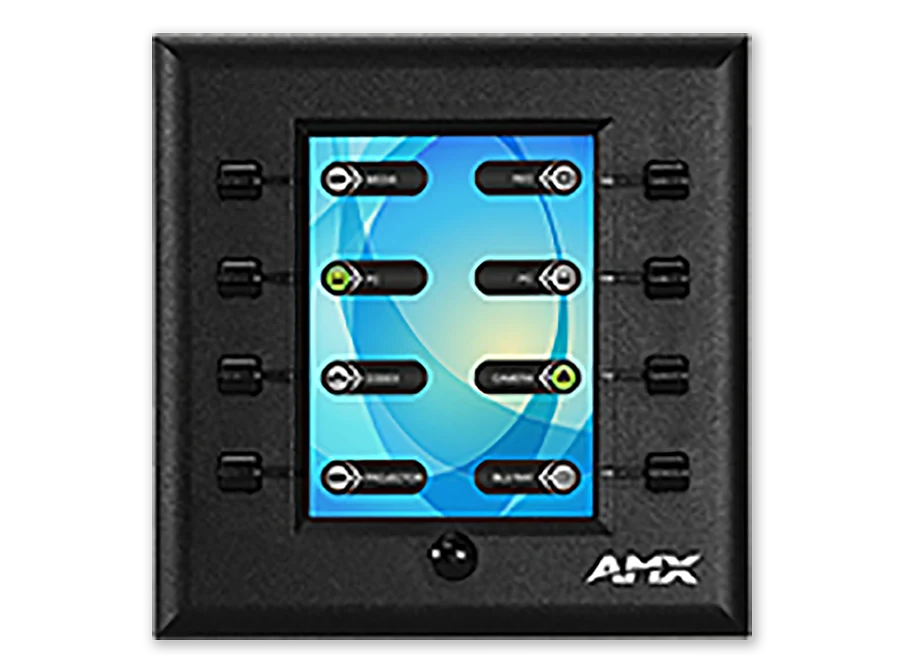

Wall Controllers are stand-alone, dual-gang IP controllers that send commands to multiple IP clients with the push of a button. N-Series Controllers have nine programmable tactile buttons with a 240 x 320 display. Programming is done individually through the built-in web-server or collectively to multiple units using N-Command Control Appliances. Multi-page custom graphics can be created using Panel Builder software, stored internally, and launched at start-up or at the push of a button. The SC-TC-D comes with a capacitive touch display and built-in WiFi and Bluetooth for expanding control to mobile devices.

Downloads

  Version Language Size Uploaded
Data Sheet     385 KB Dec 01, 2016
Manuals
User Manual - SVSI Wall Controllers     4.16 MB Mar 29, 2018
Tutorial - SVSI N-Touch Panel Builder     1.29 MB Jul 16, 2018
Bim Objects
SC-TC-D - BIM Object     Aug 12, 2019
Software
Panel Builder Standalone 2017-05-01 / v1.23.50    46.4 MB Jul 17, 2018
SVSI N8300 Wall Panel Controller Firmware Updater 05-01-2017    65.1 MB Mar 15, 2018
Quick Start Guides
Quick Start Guide - SVSI Wall Controllers     1.25 MB Mar 29, 2018
Install Guides
Cut-Out Template - SVSI Wall Controllers     62.6 KB Mar 29, 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Cost Effective - Low cost of installation
  • Multiple Commands - Sent to multiple TCP/IP clients
  • PoE - Robust Power over Ethernet (PoE) reliability and redundancy
  • Energy Efficient - Standard PoE consumption
  • EU Compliance - Supports both US and European wiring standards

Specifications

Dimensions (HWD) 4.5" x 4.5" x 1.5" (11.43 cm x 11.43 cm x 3.8 cm)
Power and Data Connection 8-wire RJ45 female Power over Ethernet (PoE)/100Base-T connector. Conforms to IEEE 802.3af Class 3 (802.3at Type 1). See Data Sheet for details.
Power Over Ethernet (PoE) Consumption: 2.5W
WiFi Internal 2.4Ghz 802.11g wireless access point (optionally bridged to the wired connection). See Data Sheet for details.
Bluetooth Bluetooth V4.0 Low Energy (BLE) - Beacon Service only. See Data Sheet for details.
Interface Eight user-defined tactile buttons, User-defined soft buttons. See Data Sheet for details.
Display 3.5" 240x320 touch screen
Operating Temperature 32° to 104°F (0° to 40°C)
FG Numbers

FGN8302-B-01 (Black)
FGN8302-W-01 (White)
