HPX-CPT200-W

Cable Pass-Thru Well Module

HPX-CPT200-W
Larger Images

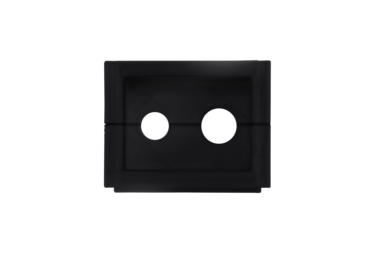

The HPX-CPT200-W provides a convenient way to keep cables out of sight in a HydraPort® HPX-600, 900 or 1200 chassis, while still being readily available to connect when needed.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
CAD Drawings
file type icon Pictorial Drawing - HPX-CPT200-W Hydraport Cable Pass-Thru Well Module (PDF)
updated: Oct 2020
    107 KB Oct 2020
file type icon Pictorial Drawing - HPX-CPT200-W Hydraport Cable Pass-Thru Well Module (DXF)
updated: Oct 2020
    349 KB Oct 2020
Data Sheets
file type icon HPX-1200 12 Module Connection Ports (english)
updated: Oct 2020
    1 MB Oct 2020
file type icon HPX-900 9 Module Connection Ports (english)
updated: Oct 2020
    1.05 MB Oct 2020
file type icon HPX-600 6 Module Connection Ports (english)
updated: Oct 2020
    1010 KB Oct 2020
Configuration Tools
file type icon HydraPort Connection Preview Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Dimensions

2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Front Panel Components
  • Small pass-thru hole(s) - 11.5mm diameter
  • Large pass-thru hole(s) - 14mm diameter
FG Numbers FG562-41
