MET-6NE

Metreau® 6-Button Ethernet Keypad with Navigation

MET-6NE
Larger Images

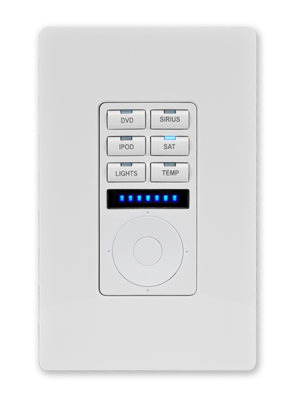

The MET-6NE Metreau 6-Button Ethernet Keypad with Navigation features source control, a navigation wheel that adjusts levels and provides up, down, left, right and select button options, as well as an LED bar for visual level feedback. The MET-6NE can be used as an individual keypad or in conjunction with the 7 or 13-Button Metreau Ethernet Expansion Keypads. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

Common Applications

Ideal for cost effective control for classrooms, conference rooms, kitchens, bathrooms, and other applications requiring simplified control up to 6 devices.

Configuration Tool

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    306 KB Mar 2024
Manuals
file type icon Instruction Manual - Metreau Keypads
updated: Mar 2018
    2.57 MB Mar 2018
CAD Drawings
file type icon Pictorial Drawing - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation (DWG)
updated: Oct 2020
    505 KB Oct 2020
file type icon Pictorial Drawing - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation (DXF)
updated: Oct 2020
    1.95 MB Oct 2020
file type icon Pictorial Drawing - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation (PDF)
updated: Oct 2020
    167 KB Oct 2020
Bim Objects
file type icon MET-6NE - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon Keypads with Ethernet Firmware
version 1.2.33, updated: Jun 2020
1.2.33     300 KB Jun 2020
Configuration Tools
file type icon Metreau Keypad Ordering Guide
updated: Jan 2021
    556 KB Jan 2021
file type icon Metreau Keypad Configuration Tool
updated: Mar 2021
    Mar 2021
Information Documents
file type icon Metreau Series Keypad Button Ordering
updated: Oct 2020
    92.7 KB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation
updated: Jun 2018
    56 KB Jun 2018
Whitepapers
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Safety Sheets
file type icon Safety Instructions - Metreau Keypads
updated: Mar 2018
    80.8 KB Mar 2018
Quick Start Guides
file type icon Quick Start Guide - MET-6NE Metreau 6-Button Ethernet Keypad with Navigation
updated: Mar 2018
    198 KB Mar 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • Connects via Standard Protocols (Ethernet) – Simplifies cabling and installation by minimizing cable runs
  • Daisy Chain up to Three Keypads – Provides the ability to connect up to three keypads using one IP address
  • Fits in Decor Style Wall Plates – Simplifies installation and looks great
  • Blue LEDs Glow to Indicate Button Selection – Improves usability by confirming the user's choice
  • Unrivaled Simplicity – Includes navigation wheel for simplified control



NOTE: Keypad wallplates not included. See ALD-CW-1, ALD-CW-2, ALD-CW-3.

Specifications

Dimensions (HWD) Keypad and Mounting Plate: 4" x 1 3/4" x 1" (10.3 cm x 4.5 cm x 2.5 cm)
Mounting Mounts into standard decor-style wallplates
Front Panel Components Pushbuttons available in a variety of field replaceable pre-printed buttons with blue LED indicators, Navigation wheel, Light-level feedback, Sensor
Rear Panel Components (1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100” (2.54 mm) IDC-type male header
Power PoE (Power over Ethernet), 802.3af, class 0 , Power Connector: (1) RJ-45 Ethernet Connector, 10/100
FG Numbers

FG5793-01-WH (White)
FG5793-01-BL (Black)
