DXF-RX-MMS

DXLink™ HDMI Multimode Fiber Receiver, Simplex

Limited Availability
DXF-RX-MMS
Larger Images

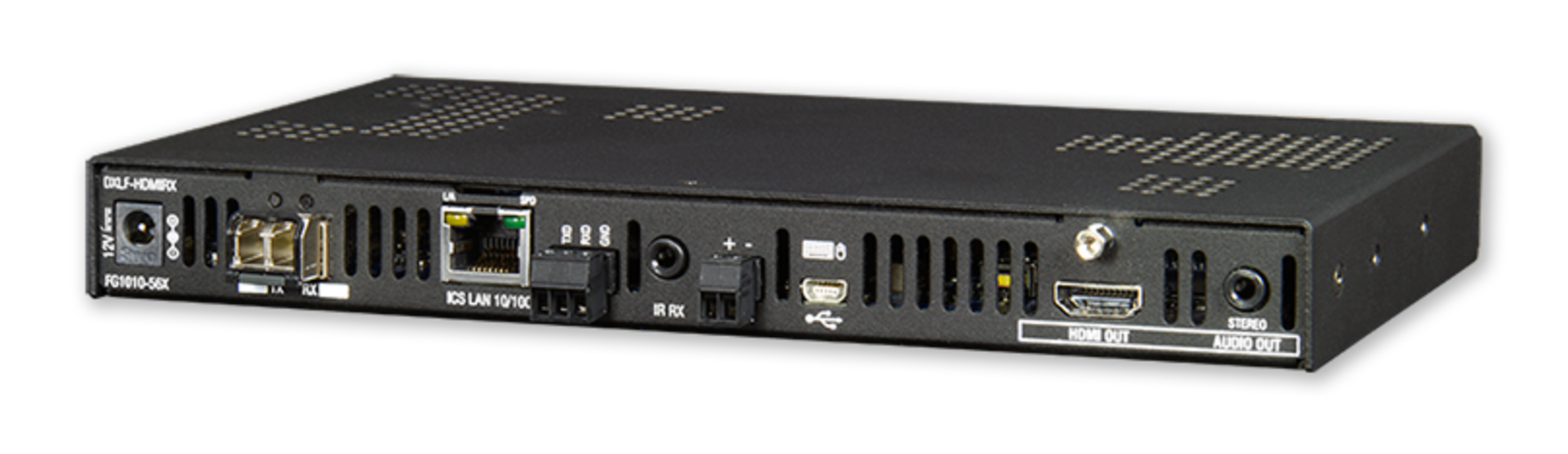

The DXLink HDMI Fiber Receiver features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio and video over multimode fiber from up to 300 meters. Mount the low-profile DXLink Fiber Receiver behind a display or above a ceiling mounted projector.

Common Applications

The ideal solution for any destination display or projector designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber – or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect LCDs, plasmas and projectors using the HDMI output connection while delivering room audio via the stereo audio output.

Downloads

  Version Language Size Uploaded
file type icon Data Sheet
updated: Mar 2024
    529 KB Mar 2024
Manuals
file type icon DXLink HID Keyboard and Mouse Supported Devices
updated: Jul 2018
    156 KB Jul 2018
file type icon Support Guide – IO Board and Endpoint Compatibility
updated: Feb 2021
    46.4 KB Feb 2021
file type icon Hardware Reference Manual - DXLink Fiber Transmitters/Receivers
updated: Jan 2021
    3.9 MB Jan 2021
Bim Objects
file type icon DXF-RX-MMS - BIM Object
updated: Aug 2019
    Aug 2019
Firmware
platform icon DXLink Fiber Receiver Firmware (100 Series Compatible)
version 1.4.19, updated: Aug 2021
1.4.19     1.4 MB Aug 2021
Quick Start Guides
file type icon Quick Start Guide - DXLink Fiber Transmitters and Receivers
updated: Mar 2018
    665 KB Mar 2018
Whitepapers
file type icon Using SDI with the Enova DGX & DVX
updated: Oct 2020
    484 KB Oct 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 300 m
  • Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
  • SmartScale® Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
  • Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field



*See Duplex models for bidirectional control over fiber. Simplex models do not support control transport over fiber (such as Ethernet, USB, IR, Serial Control or EDID); although when used as part of a complete Enova DGX solution, control can be provided if a supplemental independent network connection is used. See the "Instruction Manual – Enova DGX Digital Media Switchers" for details.

Specifications

Dimensions (HWD) 1" x 8 3/4" x 5 1/5" (2.54 x 22.12 cm x 13.08 cm)
DxLink Fiber Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); Fiber Cable Length: 300m (984 ft)
USB (HID) (1) USB Mini A/B Connector ("DEVICE")
Front Connectors Advanced Configuration Interface: (1) USB Mini-B Connector ("PROGRAM")

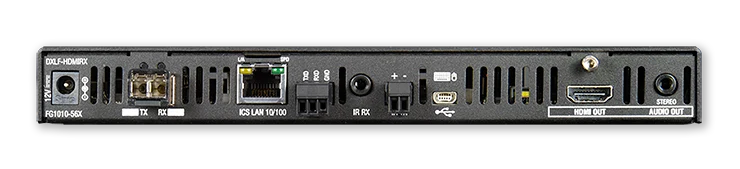

Back Connectors Local Power: 2.1 mm DC Power Jack; DXLink Fiber Input: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: (1) RJ-45 Connector
HDMI Compatible Formats: HDMI, HDCP, DVI
HDMI Resolution Support Progressive Resolution Support: All progressive resolutions between 480p and 1920 x 1200 @ 60 Hz via automatic SmartScale query of the display's preferred DID Detailed Timing Definition; Interlaced Resolution Support: 480i, 576i, 1080i
HDMI Audio Support Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH through 8 CH L-PCM, Dolby Digital and DTS support up to 48kHz, 5.1 channels; Audio Resolution: 16 bit to 24 bit
HDCP HDCP Support: Yes
Stereo Audio Output Connections: 3.5mm Mini-Stereo Jack; Output Signal Types: Stereo Analog
Power Supply External, Included: Each HDMI RX ships with a desktop power supply with power cord, 2.5 A @ 12 V, Max 13.5 V
Compatible AMX Products Enova DGX 800/1600/3200/6400 Digital Media Switchers with Multimode Fiber Output Board installed including DGX-O-DXF-MMS or DGX-O-DXF-MMD; Direct point-to-point connection with a Multimode Fiber Transmitter including DXF-TX-MMS or DXF-TX-MMD
FG Numbers FG1010-563
