AMX HPX-AV102A-DP-R

Larger Images

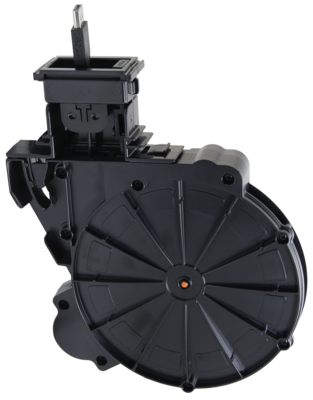

The HydraPort^® DisplayPort Module with Retractable Cable delivers a compact solution that connects a DisplayPort output from a DisplayPort-enabled device such as a visiting laptop and passes HDMI to an HDMI input within the room integration, such as an Enova DVX, Solecis SDX or DXLink Transmitter. The easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on MyTurn^™ Source Selection Button, it is easy to instruct the system to switch to the selected input.

Training

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

Getting Started with HydraPort

For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Videos

Configuration Tool

HydraPort Connection Preview Configuration Tool

Downloads

	Version	Language	Size	Uploaded
Brochures
HydraPort Product Brochure updated: Oct 22			1.24 MB	Oct 22
CAD Drawings
Pictorial Drawing - HPX-AV102A-DP-R (DWG) updated: Oct 22			1.52 MB	Oct 22
Data Sheets
HPX-1200 12 Module Connection Ports (english) updated: Oct 22			1 MB	Oct 22
HPX-600 6 Module Connection Ports (german) updated: Oct 22			1.5 MB	Oct 22
HPX-600 6 Module Connection Ports (english) updated: Oct 22			1010 KB	Oct 22
HPX-900 9 Module Connection Ports (german) updated: Oct 22			2 MB	Oct 22
HPX-900 9 Module Connection Ports (english) updated: Oct 22			1.05 MB	Oct 22
HPX-1200 12 Module Connection Ports (german) updated: Oct 22			1.54 MB	Oct 22
Safety Sheets
Safety Instructions - HydraPort version B, updated: Oct 22	B		90.8 KB	Oct 22
Configuration Tools
HydraPort Connection Preview Configuration Tool updated: Mar 23				Mar 23

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting
Flat, High-Speed cable – With support for resolutions up to 4K @60Hz, the cable ensures absolute best picture quality in a compact design

Specifications

Dimensions	1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)
Weight	Approximately 1lb (0.46 Kg)
Integrated Cable	DisplayPort Retractable Cable at 18.0 Gbps with DisplayPort pigtail connector or convert to HDMI pigtail connector by utilizing the included DisplayPort to HDMI adapter accessory Pullout Length: 5 ft (1.52m) Pigtail: 5 ft (1.52m) Pigtail Connector: HDMI Male Resolution Support: 4096x2160 @60 Hz Deep Color Support: Yes 3D Format Support: Yes
Front Panel Components	Pull-Out Connector: DisplayPort Male
Long-Term Reliability	Tested to 10,000 pull and release cycles
Recommended Accessories	HPA-MYT-TX, MyTurn Source Selector Button (FG554-21) HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23) CBL-DP-FL2, DisplayPort 4K60 MyTurn-Ready Flat Cable (FG10-2193-16) CBL-HDMI-FL2-16, HDMI 4K60 MyTurn-Ready Flat Cable, 16 ft (FG10-2192-16) CBL-HDMI-FL2-32, HDMI 4K60 MyTurn-Ready Flat Cable, 32 ft (FG10-2192-32)
FG Numbers	FG552-38
