MXT-1001 (discontinued)

10.1" Modero X® Series G5 Tabletop Touch Panel

MXT-1001
Larger Images

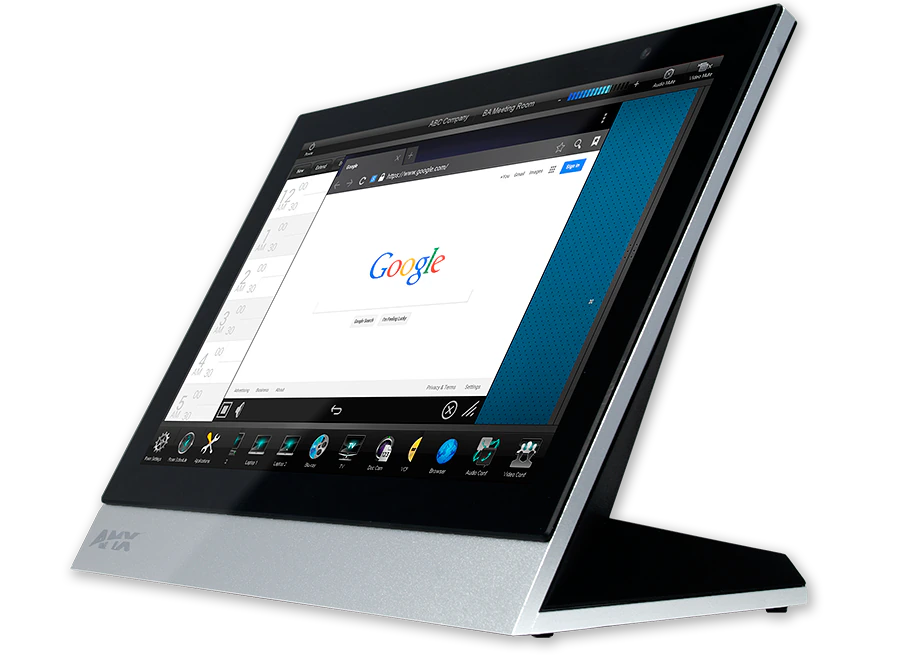

The MXT-1001 / 10.1" Modero X® Series G5 Tabletop Touch Panel is a premium user interface that includes the G5 graphics engine and delivers superior performance. Designed specifically for dedicated room control, this elegantly-styled touch panel provides fast and smooth animations and transitions, along with a quad-core processor that provides more than enough processing power to run the most demanding applications today and in the future. The MXT-1001 also includes a built-in web browser and document viewers, enabling users to access real-time information during meetings or lectures.

The MXT-1001 is built for usability, offering edge-to-edge capacitive touch glass with multi-touch capabilities. The distinctive, low-profile design is engineered to sit perfectly on a table without obstructing views, and comes with a variety of mounting options for added security and convenience.

Common Applications

  • The MXT-1001 is ideal for boardrooms, conference rooms or auditoriums where a premium control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
  • In Higher Education, the MXT-1001 is ideal for lecture halls, auditoriums, performing arts theaters and boardrooms that require extensive control capabilities.
  • In residences, it is perfect for main living areas such as kitchens, living rooms, home theaters or home offices where the control surface can be used to manage systems throughout the home.

Downloads

  Version Language Size Uploaded
file type icon Comparison Chart
updated: Mar 2024
    173 KB Mar 2024
Manuals
file type icon Installation Hardware Reference Manual - Modero X Series G5 Touch Panels
updated: Oct 2020
    2.67 MB Oct 2020
CAD Drawings
file type icon Pictorial Drawing - MXT-1000, 10.1" Modero X Series Tabletop Touch Panel (PDF)
updated: Oct 2020
    41.9 KB Oct 2020
file type icon Pictorial Drawing - MXT-1000, 10.1" Modero X Series Tabletop Touch Panel (DXF)
updated: Oct 2020
    1.46 MB Oct 2020
file type icon Pictorial Drawing - MXT-1000, 10.1" Modero X Series Tabletop Touch Panel (DWG)
updated: Oct 2020
    460 KB Oct 2020
Software
platform icon TPDesign5
version 1.5.111, updated: Oct 2018
1.5.111     46.1 MB Oct 2018
platform icon G5 Support Files
version 1.5.69, updated: Jun 2023
1.5.69     2.47 MB Jun 2023
Firmware
platform icon Modero G5 (MD & MT) Touch Panel Firmware
version 1.8.55, updated: Oct 2022
1.8.55     276 MB Oct 2022
Data Sheets
file type icon Data Sheet - MXT-1001
updated: Oct 2020
    636 KB Oct 2020
Quick Start Guides
file type icon Quick Start Guide - MXT-1001 Modero X Series G5 Tabletop Touch Panel
updated: Oct 2020
    196 KB Oct 2020
A&E (Architectural & Engineering) Specifications
file type icon A&E Spec - Modero X Series G5 10.1" Wall/Tabletop Touch Panels
updated: Jun 2018
    104 KB Jun 2018
Whitepapers
file type icon AMX G5 Considerations
updated: Apr 2018
    1.15 MB Apr 2018
file type icon Digital Media Capabilities of the Modero X Series Touch Panels
updated: Apr 2018
    1.22 MB Apr 2018
file type icon AMX AV/IT Administrator's Guide
updated: Oct 2020
    2.61 MB Oct 2020
Programming Guides
file type icon Configuration and Programming Guide - Modero X Series G5 Touch Panels
updated: Oct 2020
    5.26 MB Oct 2020
Safety Sheets
file type icon Safety Instructions - Modero X Series G5 Touch Panels
updated: Oct 2020
    102 KB Oct 2020
Touch Panel Files
file type icon G5 Basic Drag and Drop Demo Touch Panel File (1280x800)
updated: Jul 2018
    2.36 MB Jul 2018
file type icon G5 Advanced Drag and Drop Demo Touch Panel File (1280x800)
updated: Jul 2018
    2.55 MB Jul 2018
file type icon G5 Supplemental Drag and Drop Demo Touch Panel File - Source Control (1280x800)
updated: Jul 2018
    5.31 MB Jul 2018
file type icon G5 Supplemental Drag and Drop Demo Touch Panel File - TV Favorites (1280x800)
updated: Jul 2018
    6.77 MB Jul 2018
file type icon G5 Listview Button/Dynamic Data Demos Touch Panel File
updated: Jul 2018
    66.2 MB Jul 2018
file type icon MXT-1001 G5 Landscape Demo Touch Panel File (1280x800)
updated: Jul 2018
    5.95 MB Jul 2018
file type icon MXT/D-1001 G5 Portrait Demo Touch Panel File (800x1280)
updated: Jul 2018
    2.86 MB Jul 2018

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • G5 Graphics Engine and Quad Core Processing – The most powerful processing in the industry delivers smooth gesturing, swiping, dynamic reordering, enhanced animation with transitions all at higher speeds for an experience any user will enjoy
  • Simplified Enterprise Touch Panel and Firmware Updates – Deploy and update touch panel files and firmware files from a network URL for simplified company-wide updates
  • Built-in Web Browser, Document Viewers and Enzo Sharing – Conveniently simplifies accessing and presenting real-time content and documents during meetings. Simply preview files accessed via the native web browser, USB, or cloud storage apps before sending content directly to Enzo. An upcoming firmware release will allow apps to be updated or disabled using the onboard G5 App Update Manager.
  • Adjustable Security Modes – With the ability to select from high security or custom modes, administrators can customize the panel’s security levels for access, networking and communication.
  • Perfect From Any Angle – Includes In-Plane Switching (IPS), which delivers the widest viewing angles and the most accurate color reproduction on the market
  • Enhanced User Experience – The Modero X Series features intuitive UI functionality including: gesturing, swiping, dynamic reordering and enhanced animation capabilities
  • View and Select Dynamic Data with Listview Buttons – Display a listing of entries generated by a dynamic data source (e.g. phonebook contacts, call logs, RSS feed or other real time data sources) enabling the user to scroll or search to make a selection. Demos are available in the UI Resource Center

*Product Update Notice: Near Field Communication™ (NFC) and High Frequency RFID (HF RFID) will no longer be included product features for all AMX Modero X® Series Touch Panels, shipping on or after October 1, 2017.

Specifications

Display Size (WH) 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal
Viewable Area (WH) 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal
Resolution 1280x800
Viewing Angle Vertical: ± 89°, Horizontal: ± 89°
Aspect Ratio 16:9
Touch Overlay Projected capacitive, multi-touch support, 3 simultaneous max
Graphics Engine AMX G5
Front Panel Components Light Sensor, Proximity Detector, Camera, LED Indicators, Sleep button. See Data Sheet for details.
Power Consumption Full-On: 12.95 W maximum
Temperature Range Operating: 32° F to 104° F (0° C to 40° C)
Networking Support for static/dynamic IPv4 and static IPv6
FG Numbers FG5968-47
