DX-TX-4K60

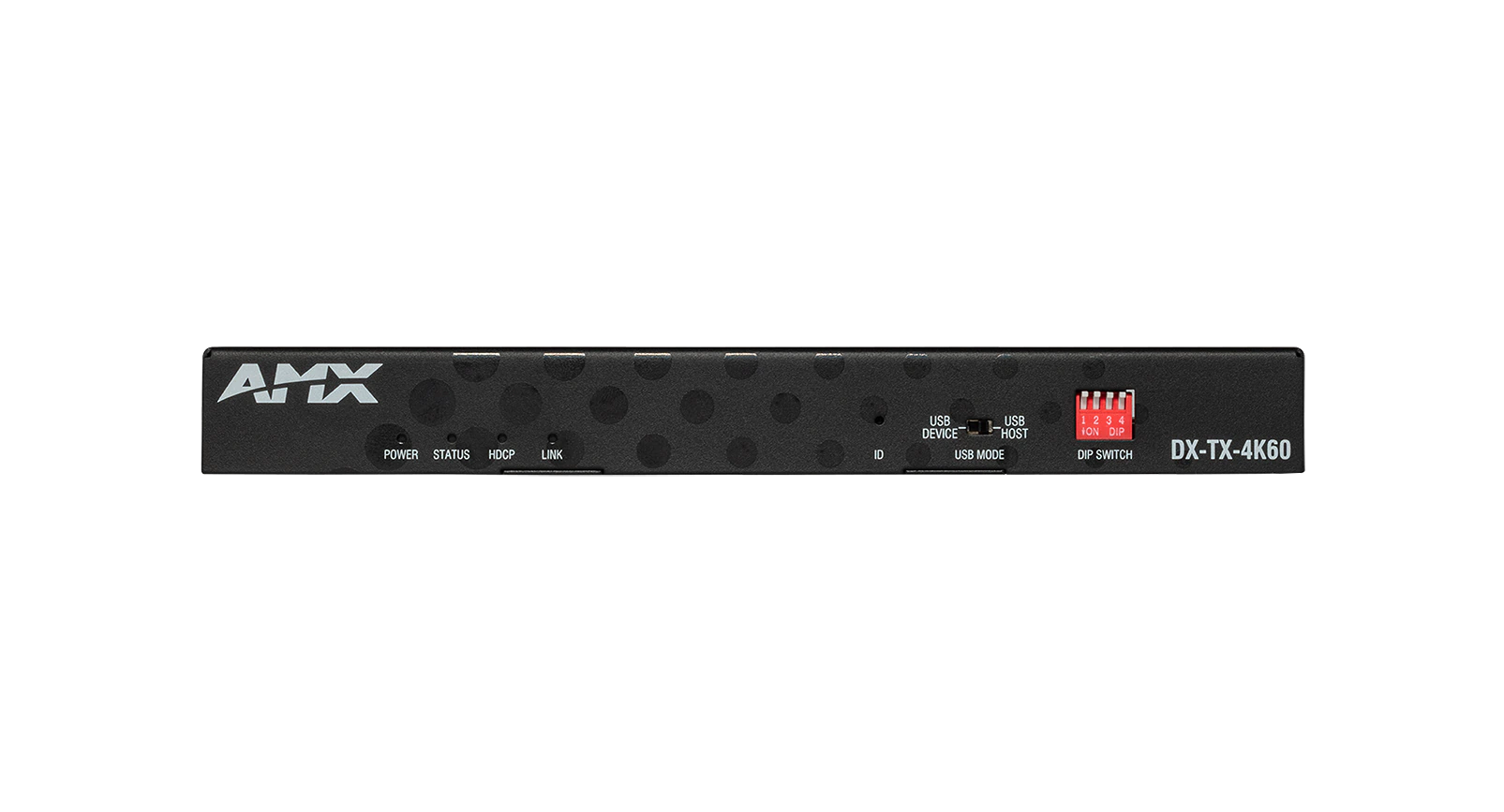

DXLink 4K60 HDMI Transmitter Module

Larger Images

The AMX DXLink 4K60 HDMI Transmitter Module is a 4K60 4:4:4 capable distance transport solution with support for HDMI 2.0 and HDCP 2.2. It transmits audio, video, control, Ethernet, and USB 2.0 over one shielded Cat6, Cat6A or Cat7 standard twisted pair cable. DXLink 4K60 HDMI Transmitter Modules are perfect for sending HDMI and control signals over long distances to a remote DXLink 4K60 Receiver Module or other compatible AMX Receivers such as the DGX DXLink 4K60 Twisted Pair Input Board. The transmitter's built-in control ports can be used to control a source device and the ICSLan port provides an IP network access port when used in conjunction with the Enova DGX 100 Series.

  • PICTURE PERFECT
    DXLink 4K60 Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

  • HDR and Deep Color Support
    DXLink 4K60 Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

  • USB 2.0 Extension
    DXLink 4K60 Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

  • ULTRA CLEAN INSTALLS
    DXLink 4K60 4:4:4 TX/RX can deliver audio, video, control, Ethernet, and USB 2.0 signals up to 100m over a single category cable, eliminating the need for multiple, costly cable runs.

featured content

PICTURE PERFECT
DXLink 4K60 Transmitters and Receivers allow end users to realize the full potential of their source and display devices by fully supporting the latest HDMI 2.0 and HDCP 2.2 standards.

featured content

HDR and Deep Color Support
DXLink 4K60 Transmitters and Receivers support HDR10 and 36-bit Deep Color for the richest, most realistic video.

featured content

USB 2.0 Extension
DXLink 4K60 Transmitters and Receivers can extend high-speed USB 2.0 data from devices like web cameras or storage devices without the need for extra cables.

featured content

ULTRA CLEAN INSTALLS
DXLink 4K60 4:4:4 TX/RX can deliver audio, video, control, Ethernet, and USB 2.0 signals up to 100m over a single category cable, eliminating the need for multiple, costly cable runs.

Common Applications

The DXLink 4K60 HDMI Transmitter Module is ideal for extending 4K60 4:4:4 video in any situation where the highest video quality is required or when a simple installation is desired:

  • Colleges and universities that transmit audio and video within or between classrooms for collaborative or distributed learning.
  • Corporations that distribute audio and video within meeting spaces.
  • Healthcare facilities distributing high-resolution video within training rooms, simulation rooms, or labs.

Videos





Configuration Tool

Downloads

  Version Language Size Uploaded
Manuals
file type icon Hardware Reference Manual - DXLink 4K60 Twisted Pair Transmitter & Receiver
en version 1.0.7, updated: May 2023
1.0.7  en  3.86 MB May 2023
file type icon Support Guide - IO Board and Endpoint Compatibility
updated: Dec 2020
    46.4 KB Dec 2020
CAD Drawings
file type icon Pictorial Drawing (PDF) – DX-TX-4K60
updated: Dec 2020
    320 KB Dec 2020
file type icon Pictorial Drawing (DXF) – DX-TX-4K60
updated: Dec 2020
    5.01 MB Dec 2020
file type icon Pictorial Drawing (DWG) – DX-TX-4K60
updated: Dec 2020
    1.14 MB Dec 2020
Firmware
platform icon DXLink 4K60 Transmitter Firmware
version 1.8.4, updated: Sep 2023
1.8.4     67.9 MB Sep 2023
Whitepapers
file type icon Cabling for Success with DXLink
updated: Oct 2020
    1.6 MB Oct 2020
Product Guides
file type icon DXLink Compatibility Tool
updated: Apr 2021
    Apr 2021
Certifications
file type icon IECEE CB Test Certificate – DX-TX-4K60
updated: Dec 2020
    2.33 MB Dec 2020
file type icon CE Declaration of Conformity – DX-TX-4K60
updated: Dec 2020
    683 KB Dec 2020
Quick Start Guides
file type icon Quick Start Guide – DX-TX-4K60
updated: Dec 2020
    548 KB Dec 2020
Data Sheets
file type icon DX-TX-4K60 - Data Sheet
updated: Feb 2021
    188 KB Feb 2021
Configuration Tools
file type icon Enova DGX 100 Series Configuration Tool
updated: Mar 2021
    Mar 2021

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Features

  • HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which use the full fidelity of their displays
  • High Dynamic Range (HDR) and Deep Color Support – Support for HDR10 and 36-bit Deep Color.
  • HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces.

  • HDBaseT Compatible - Compliant with the HDBaseT standard, making them compatible with third party HDBaseT displays.
  • USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
  • As Always, Just One Cable – Just like all current AMX DXLink audio and video transport solutions, high level resolution and fidelity transport is achieved over a single twisted pair cable in comparison to other products that may require dual cable runs, typically adding significant cost.
  • Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable.

Specifications

Dimensions (HWD) 1" x 8 2/3" x 6 1/3" (2.54 cm x 22.0 cm x 16.0 cm)
Twisted Pair Cable Type & Length Shielded Cat6, Shielded Cat6A, Cat7.
Distances up to 328 ft (100 m) supported
on Shielded Cat6A and Cat7
Back Connectors Local Power; 2.1mm DC Power Jack; HDMI
Input: HDMI Type A Female; Analog Stereo
Input: 3.5mm Mini-Stereo Jack;
ICSLAN/Ethernet Port: RJ-45;
IR-RX Port: 3.5mm Mini Mono Jack;
IR-TX Port: 2-pin Phoenix;
Serial Port: 3-pin Phoenix;
DXLink Port: RJ-45;
USB Host Port: USB Type B;
USB Device Port: USB Type A
USB2.0 USB2.0 supported point-to-point to DXLink
4K60 compatible switcher or DXLink 4K60
HDMI Receiver
HDMI Compatible Formats: HDMI2.0, HDCP2.2, DVI
Resolution Support Up to 4096 x 2160p @ 60 Hz, 4:4:4
HDMI Audio Audio Resolution: 16 bit to 24 bit;
Audio Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
FG Numbers FG1010-312-01
FG1010-312-02 (TAA)
